Statement: Pack the two unpacked BCD numbers stored in memory locations 4200H and 4201H and store result in memory location 4300H. Assume the least significant digit is stored at 4200H.

Sample problem:

(4200H) = 04

(4201H) = 09

Result = (4300H) = 94

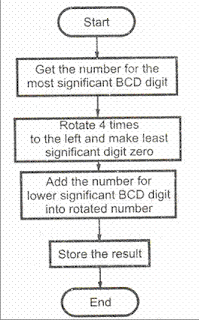

Source program

LDA 4201H : Get the Most significant BCD digit

RLC

RLC

RLC

RLC : Adjust the position of the second digit (09 is changed to 90)

ANI FOH : Make least significant BCD digit zero

MOV C, A : store the partial result

LDA 4200H : Get the lower BCD digit

ADD C : Add lower BCD digit

STA 4300H : Store the result

HLT : Terminate program execution

NOTE:

BCD NO.: The numbers "0 to 9" are called BCD (Binary Coded Decimal) numbers. A decimal number 29 can be converted into BCD number by splitting

(4200H) = 04

(4201H) = 09

Result = (4300H) = 94

Source program

LDA 4201H : Get the Most significant BCD digit

RLC

RLC

RLC

RLC : Adjust the position of the second digit (09 is changed to 90)

ANI FOH : Make least significant BCD digit zero

MOV C, A : store the partial result

LDA 4200H : Get the lower BCD digit

ADD C : Add lower BCD digit

STA 4300H : Store the result

HLT : Terminate program execution

NOTE:

BCD NO.: The numbers "0 to 9" are called BCD (Binary Coded Decimal) numbers. A decimal number 29 can be converted into BCD number by splitting
